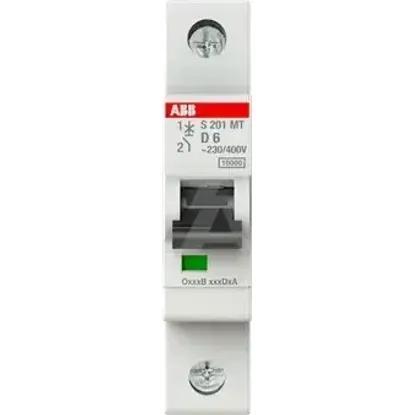

2CDS271445R0061 | S201MT-D6
Code: 2002423
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Voltage typeOther
Frequency50 - 60Hz
Number of poles (total)1
Current limiting class3
Release characteristicD
Rated current6A
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated impulse withstand voltage Uimp4kV
Power loss1.9W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Built-in depth69mm
Rated voltage230V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated insulation voltage Ui440V
Connectable conductor cross section solid-core0.75 - 35mm²
Width in number of modular spacings1.0
Ambient temperature during operating-40 - 70°C
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Explosion-proofNo
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Pollution degree3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS271445R0061 | S201MT-D6
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Voltage type
Other
Frequency
50 .. 60Hz
Number of poles (total)
1
Current limiting class
3
Release characteristic
D
Rated current
6A
Number of protected poles
1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Rated impulse withstand voltage Uimp
4kV
Power loss
1.9W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Built-in depth
69mm
Rated voltage
230V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated insulation voltage Ui
440V
Connectable conductor cross section solid-core
0.75 .. 35mm²
Width in number of modular spacings
1.0
Ambient temperature during operating
-40 .. 70°C
Flush-mounted installation
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Explosion-proof
Over voltage category
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Additional equipment possible
Pollution degree
3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
