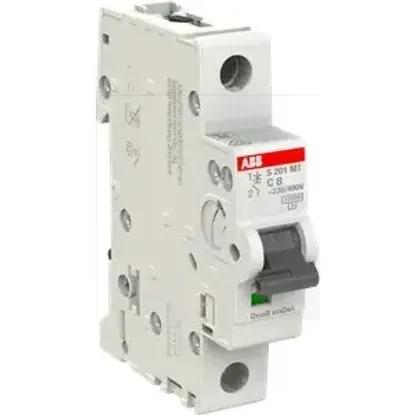

2CDS271445R0084 | S201MT-C8
Code: 2002427
ManufacturerABB
Catalog number2CDS271445R0084
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123303
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage230V
Over voltage category3
Voltage typeOther
Built-in depth69mm
Current limiting class3
Explosion-proofNo
Frequency50 - 60Hz
Power loss1.5W
Pollution degree3
Rated insulation voltage Ui440V
Width in number of modular spacings1
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Degree of protection (IP)IP20
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp4kV
Rated current8A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
