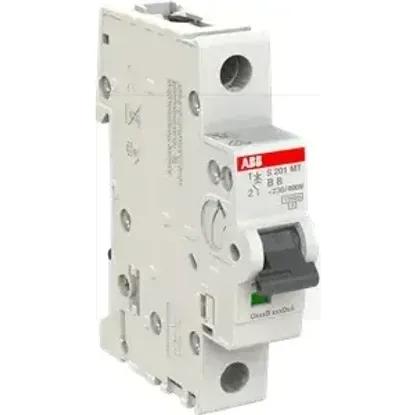

2CDS271445R0085 | S201MT-B8
Code: 2002428
ManufacturerABB
Catalog number2CDS271445R0085
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779122085
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Power loss1.5W
Explosion-proofNo
Rated insulation voltage Ui440V
Current limiting class3
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
Rated voltage230V
Voltage typeOther
Built-in depth69mm
Degree of protection (IP)IP20
Width in number of modular spacings1
Number of protected poles1
Frequency50 - 60Hz
Over voltage category3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Flush-mounted installationNo
Rated current8A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
