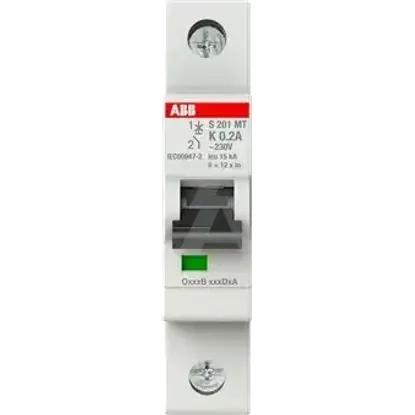

2CDS271445R0087 | S201MT-K0,2
Code: 2002429
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Number of poles (total)1
Rated impulse withstand voltage Uimp4kV
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated insulation voltage Ui440V
Rated voltage230V
Voltage typeOther
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Release characteristicK
Rated current0.2A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Current limiting class3
Power loss1.7W
Additional equipment possibleYes
Over voltage category3
Concurrently switching neutral conductorNo
Explosion-proofNo
Pollution degree3
Width in number of modular spacings1.0
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Ambient temperature during operating-40 - 70°C
