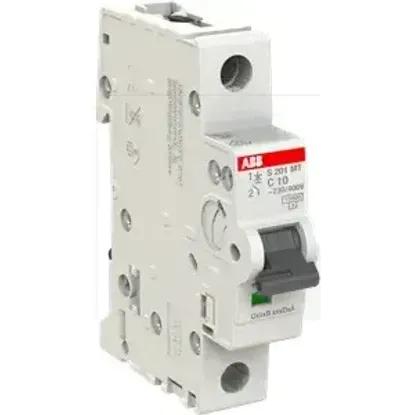

2CDS271445R0104 | S201MT-C10
Code: 2002431
ManufacturerABB
Catalog number2CDS271445R0104
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123310
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Width in number of modular spacings1
Over voltage category3
Pollution degree3
Current limiting class3
Power loss2.1W
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of protected poles1
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Ambient temperature during operating-40 - 70°C
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Explosion-proofNo
Rated voltage230V
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated current10A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
