Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Frequency50 - 60Hz
Rated voltage230V
Degree of protection (IP)IP20
Rated insulation voltage Ui440V
Current limiting class3
Over voltage category3
Power loss2.3W
Width in number of modular spacings1.0
Rated impulse withstand voltage Uimp4kV
Explosion-proofNo
Additional equipment possibleYes
Number of protected poles1
Ambient temperature during operating-40 - 70°C
Pollution degree3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated current13A
Release characteristicD
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

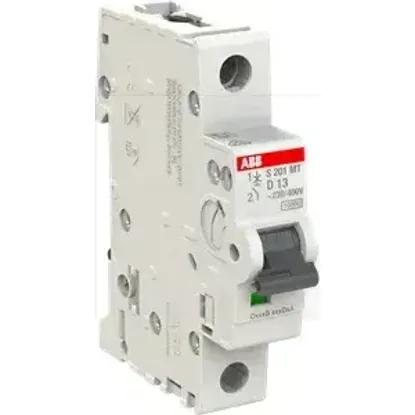

2CDS271445R0131 | S201MT-D13
