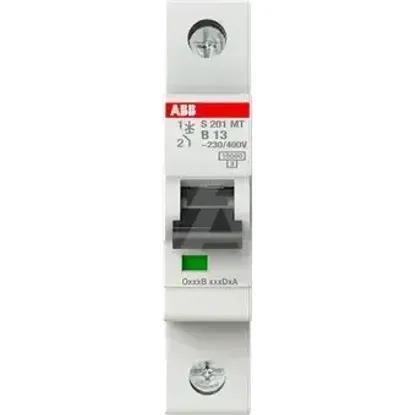

2CDS271445R0135 | S201MT-B13
Code: 2002436
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Number of poles (total)1
Number of protected poles1
Release characteristicB
Power loss2.3W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Frequency50 - 60Hz
Current limiting class3
Built-in depth69mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated current13A
Voltage typeOther
Rated voltage230V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Explosion-proofNo
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Over voltage category3
Ambient temperature during operating-40 - 70°C
Flush-mounted installationNo
Pollution degree3
Degree of protection (IP)IP20
Width in number of modular spacings1.0
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
