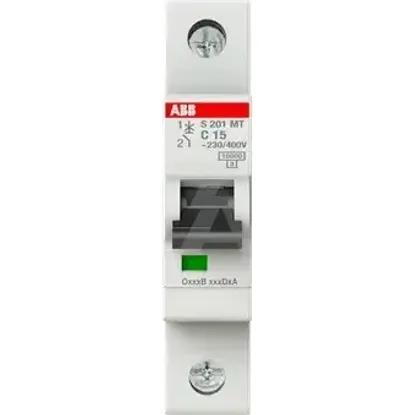

2CDS271445R0154 | S201MT-C15
Code: 2002438
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of protected poles1
Built-in depth69mm
Number of poles (total)1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Voltage typeOther
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Power loss-W
Rated current15A
Current limiting class3
Release characteristicC
Rated voltage230V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Frequency50 - 60Hz
Flush-mounted installationNo
Width in number of modular spacings1.0
Additional equipment possibleYes
Pollution degree3
Concurrently switching neutral conductorNo
Over voltage category3
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Ambient temperature during operating-40 - 70°C
