Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Current limiting class3
Rated voltage230V
Release characteristicB
Over voltage category3
Pollution degree3
Voltage typeOther
Frequency50 - 60Hz
Rated current15A
Built-in depth69mm
Rated insulation voltage Ui440V
Width in number of modular spacings1.0
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Power loss-W
Number of poles (total)1
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Concurrently switching neutral conductorNo
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Number of protected poles1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

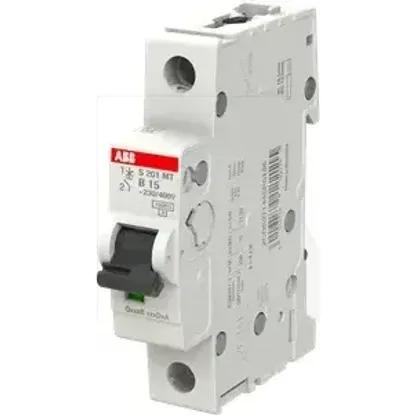

2CDS271445R0155 | S201MT-B15
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Current limiting class
3
Rated voltage
230V
Release characteristic
B
Over voltage category
3
Pollution degree
3
Voltage type
Other
Frequency
50 .. 60Hz
Rated current
15A
Built-in depth
69mm
Rated insulation voltage Ui
440V
Width in number of modular spacings
1.0
Explosion-proof
Connectable conductor cross section solid-core
0.75 .. 35mm²
Power loss
-W
Number of poles (total)
1
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Concurrently switching neutral conductor
Ambient temperature during operating
-40 .. 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Flush-mounted installation
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Degree of protection (IP)
IP20
Rated impulse withstand voltage Uimp
4kV
Number of protected poles
1
