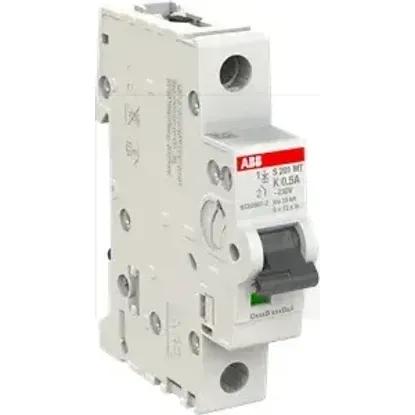

2CDS271445R0157 | S201MT-K0,5
Code: 2002440
ManufacturerABB
Catalog number2CDS271445R0157
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779125864
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage230V
Rated insulation voltage Ui440V
Built-in depth69mm
Frequency50 - 60Hz
Current limiting class3
Voltage typeOther
Width in number of modular spacings1
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Power loss1.1W
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Number of protected poles1
Over voltage category3
Explosion-proofNo
Pollution degree3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated current0.5A
Release characteristicK
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
