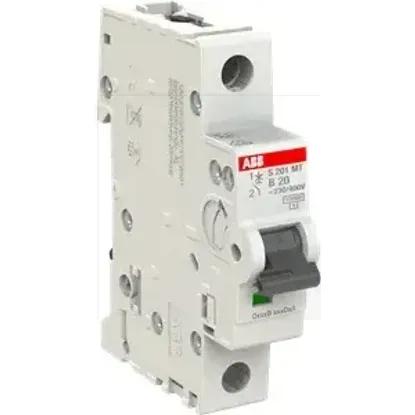

2CDS271445R0205 | S201MT-B20
Code: 2002448
ManufacturerABB
Catalog number2CDS271445R0205
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779122139
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Power loss2.5W
Frequency50 - 60Hz
Pollution degree3
Width in number of modular spacings1
Current limiting class3
Rated voltage230V
Explosion-proofNo
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Over voltage category3
Number of protected poles1
Ambient temperature during operating-40 - 70°C
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated current20A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
