Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Power loss3.2W
Degree of protection (IP)IP20
Voltage typeOther
Current limiting class3
Rated current25A
Width in number of modular spacings1.0
Pollution degree3
Rated insulation voltage Ui440V
Over voltage category3
Explosion-proofNo
Rated voltage230V
Release characteristicC
Frequency50 - 60Hz
Built-in depth69mm
Number of protected poles1
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Number of poles (total)1
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Ambient temperature during operating-40 - 70°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

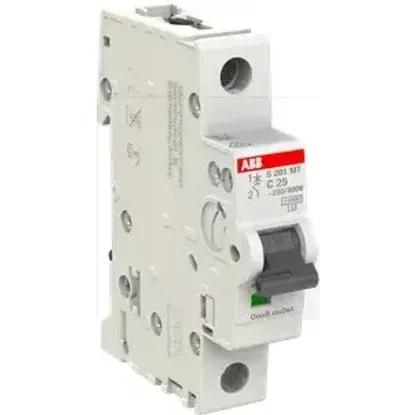

2CDS271445R0254 | S201MT-C25
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Power loss
3.2W
Degree of protection (IP)
IP20
Voltage type
Other
Current limiting class
3
Rated current
25A
Width in number of modular spacings
1.0
Pollution degree
3
Rated insulation voltage Ui
440V
Over voltage category
3
Explosion-proof
Rated voltage
230V
Release characteristic
C
Frequency
50 .. 60Hz
Built-in depth
69mm
Number of protected poles
1
Flush-mounted installation
Concurrently switching neutral conductor
Additional equipment possible
Number of poles (total)
1
Rated impulse withstand voltage Uimp
4kV
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Connectable conductor cross section solid-core
0.75 .. 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Ambient temperature during operating
-40 .. 70°C
