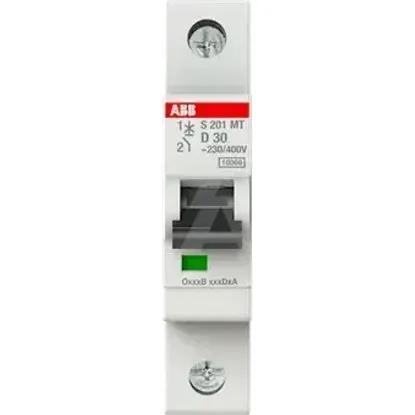

2CDS271445R0301 | S201MT-D30
Code: 2002458
ManufacturerABB
Catalog number2CDS271445R0301
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779124690
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Rated voltage230V
Width in number of modular spacings1
Explosion-proofNo
Current limiting class3
Over voltage category3
Pollution degree3
Frequency50 - 60Hz
Power loss-W
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Flush-mounted installationNo
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Connectable conductor cross section solid-core0.75 - 35mm²
Number of protected poles1
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Degree of protection (IP)IP20
Rated current30A
Release characteristicD
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
