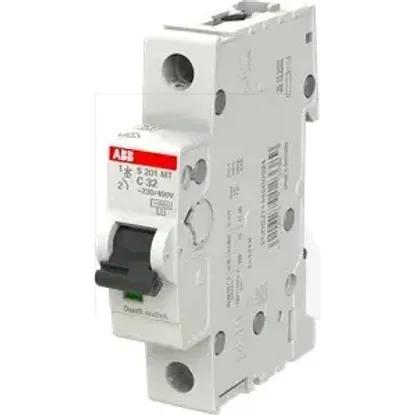

2CDS271445R0324 | S201MT-C32
Code: 2002464
ManufacturerABB
Catalog number2CDS271445R0324
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123389
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Current limiting class3
Voltage typeOther
Rated voltage230V
Rated insulation voltage Ui440V
Built-in depth69mm
Over voltage category3
Frequency50 - 60Hz
Flush-mounted installationNo
Width in number of modular spacings1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Number of protected poles1
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-40 - 70°C
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
Power loss3.7W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Explosion-proofNo
Rated current32A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
