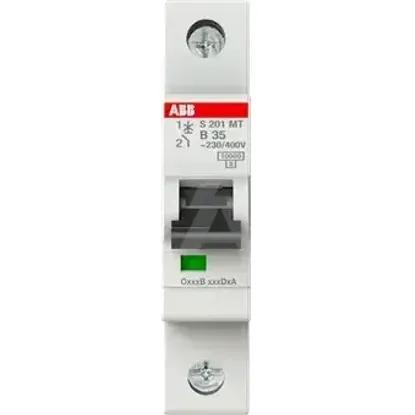

2CDS271445R0355 | S201MT-B35
Code: 2002470
ManufacturerABB
Catalog number2CDS271445R0355
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779122177
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Current limiting class3
Frequency50 - 60Hz
Rated voltage230V
Voltage typeOther
Built-in depth69mm
Rated insulation voltage Ui440V
Concurrently switching neutral conductorNo
Pollution degree3
Explosion-proofNo
Degree of protection (IP)IP20
Number of protected poles1
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Over voltage category3
Power loss-W
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Ambient temperature during operating-40 - 70°C
Flush-mounted installationNo
Width in number of modular spacings1
Rated impulse withstand voltage Uimp4kV
Rated current35A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
