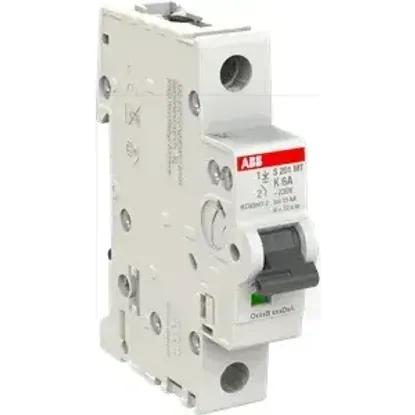

2CDS271445R0377 | S201MT-K6
Code: 2002473
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current6A
Rated impulse withstand voltage Uimp4kV
Built-in depth69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Power loss1.9W
Rated voltage230V
Number of poles (total)1
Number of protected poles1
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Frequency50 - 60Hz
Voltage typeOther
Release characteristicK
Flush-mounted installationNo
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Over voltage category3
Pollution degree3
Concurrently switching neutral conductorNo
Width in number of modular spacings1.0
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
