Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Over voltage category3
Release characteristicD
Width in number of modular spacings1.0
Built-in depth69mm
Rated current40A
Ambient temperature during operating-40 - 70°C
Rated insulation voltage Ui440V
Rated voltage230V
Frequency50 - 60Hz
Number of protected poles1
Power loss4.8W
Pollution degree3
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Voltage typeOther
Current limiting class3
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

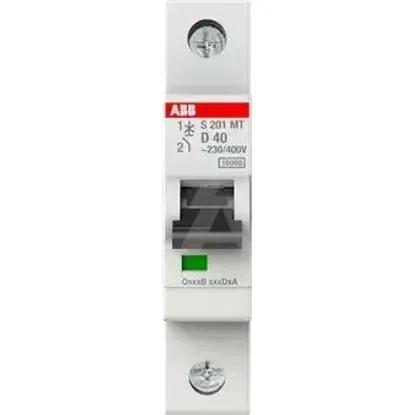

2CDS271445R0401 | S201MT-D40
