Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Rated voltage230V
Rated current13A
Explosion-proofNo
Width in number of modular spacings1.0
Frequency50 - 60Hz
Current limiting class3
Pollution degree3
Over voltage category3
Rated insulation voltage Ui440V
Release characteristicK
Voltage typeOther
Number of poles (total)1
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 70°C
Number of protected poles1
Power loss2.4W
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

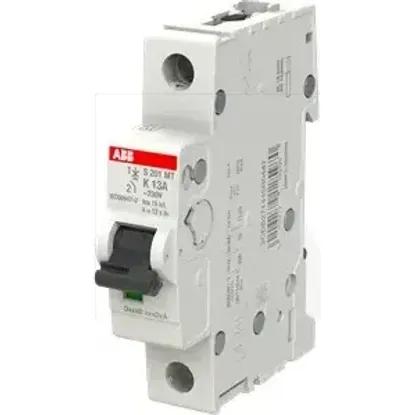

2CDS271445R0447 | S201MT-K13
