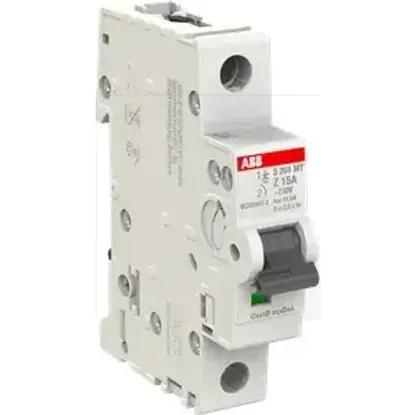

2CDS271445R0458 | S201MT-Z15
Code: 2002485
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current15A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Number of protected poles1
Number of poles (total)1
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Release characteristicZ
Rated voltage230V
Built-in depth69mm
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui440V
Voltage typeOther
Power loss3W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Frequency50 - 60Hz
Width in number of modular spacings1.0
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Ambient temperature during operating-40 - 70°C
Additional equipment possibleYes
Pollution degree3
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Over voltage category3
