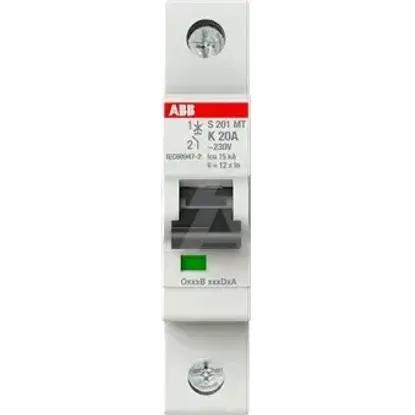

2CDS271445R0487 | S201MT-K20
Code: 2002488
ManufacturerABB
Catalog number2CDS271445R0487
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779126007
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Pollution degree3
Current limiting class3
Explosion-proofNo
Built-in depth69mm
Over voltage category3
Power loss2.7W
Width in number of modular spacings1
Frequency50 - 60Hz
Rated voltage230V
Voltage typeOther
Rated insulation voltage Ui440V
Number of protected poles1
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Degree of protection (IP)IP20
Rated current20A
Release characteristicK
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
