Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Voltage typeOther
Rated voltage230V
Built-in depth69mm
Release characteristicD
Rated current50A
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Width in number of modular spacings1.0
Over voltage category3
Number of protected poles1
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Explosion-proofNo
Flush-mounted installationNo
Pollution degree3
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of poles (total)1
Current limiting class3
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Power loss3.6W
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

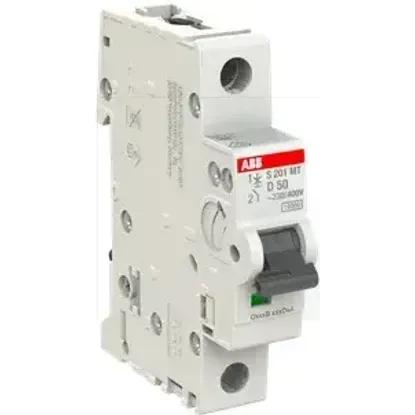

2CDS271445R0501 | S201MT-D50
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Frequency
50 .. 60Hz
Voltage type
Other
Rated voltage
230V
Built-in depth
69mm
Release characteristic
D
Rated current
50A
Rated insulation voltage Ui
440V
Degree of protection (IP)
IP20
Width in number of modular spacings
1.0
Over voltage category
3
Number of protected poles
1
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Explosion-proof
Flush-mounted installation
Pollution degree
3
Ambient temperature during operating
-40 .. 70°C
Connectable conductor cross section solid-core
0.75 .. 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Number of poles (total)
1
Current limiting class
3
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Concurrently switching neutral conductor
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Power loss
3.6W
