Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Number of protected poles1
Release characteristicC
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated voltage230V
Rated current50A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Voltage typeOther
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Power loss3.6W
Frequency50 - 60Hz
Current limiting class3
Pollution degree3
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Width in number of modular spacings1.0
Flush-mounted installationNo
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

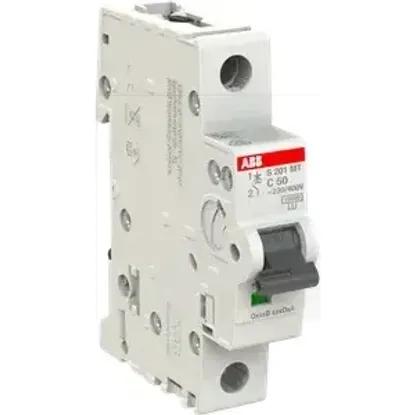

2CDS271445R0504 | S201MT-C50
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Built-in depth
69mm
Number of protected poles
1
Release characteristic
C
Rated insulation voltage Ui
440V
Rated impulse withstand voltage Uimp
4kV
Rated voltage
230V
Rated current
50A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Voltage type
Other
Number of poles (total)
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Power loss
3.6W
Frequency
50 .. 60Hz
Current limiting class
3
Pollution degree
3
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Width in number of modular spacings
1.0
Flush-mounted installation
Over voltage category
3
Connectable conductor cross section solid-core
0.75 .. 35mm²
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Additional equipment possible
Ambient temperature during operating
-40 .. 70°C
Explosion-proof
