Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Rated current25A
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Number of protected poles1
Pollution degree3
Power loss3.1W
Current limiting class3
Width in number of modular spacings1.0
Degree of protection (IP)IP20
Release characteristicK
Rated voltage230V
Explosion-proofNo
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Over voltage category3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

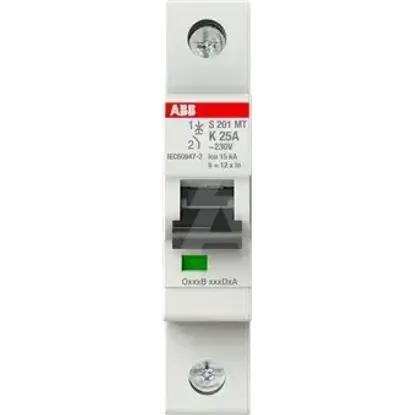

2CDS271445R0517 | S201MT-K25
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Built-in depth
69mm
Rated current
25A
Frequency
50 .. 60Hz
Rated insulation voltage Ui
440V
Number of protected poles
1
Pollution degree
3
Power loss
3.1W
Current limiting class
3
Width in number of modular spacings
1.0
Degree of protection (IP)
IP20
Release characteristic
K
Rated voltage
230V
Explosion-proof
Additional equipment possible
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Flush-mounted installation
Ambient temperature during operating
-40 .. 70°C
Connectable conductor cross section solid-core
0.75 .. 35mm²
Concurrently switching neutral conductor
Over voltage category
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated impulse withstand voltage Uimp
4kV
Number of poles (total)
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
