Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of poles (total)1
Built-in depth69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Number of protected poles1
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated current30A
Rated voltage230V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Power loss3.5W
Release characteristicK
Frequency50 - 60Hz
Voltage typeOther
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Width in number of modular spacings1.0
Degree of protection (IP)IP20
Over voltage category3
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
Pollution degree3
Flush-mounted installationNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

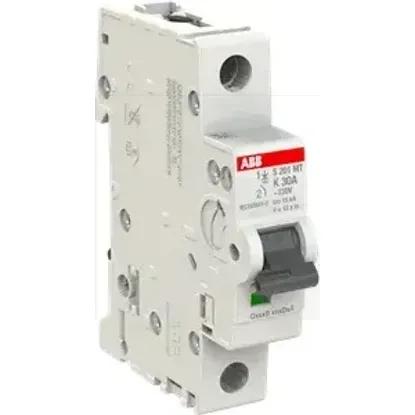

2CDS271445R0527 | S201MT-K30
