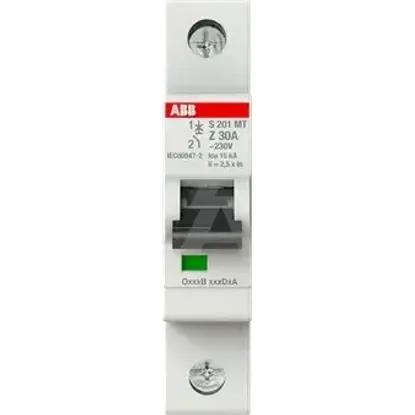

2CDS271445R0528 | S201MT-Z30
Code: 2002496
ManufacturerABB
Catalog number2CDS271445R0528
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779127394
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Over voltage category3
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Pollution degree3
Ambient temperature during operating-40 - 70°C
Concurrently switching neutral conductorNo
Power loss3.5W
Number of protected poles1
Rated insulation voltage Ui440V
Voltage typeOther
Current limiting class3
Frequency50 - 60Hz
Rated voltage230V
Connectable conductor cross section multi-wired0.75 - 25mm²
Width in number of modular spacings1
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated current30A
Release characteristicZ
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
