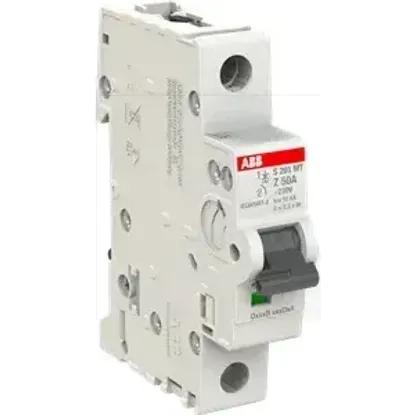

2CDS271445R0578 | S201MT-Z50
Code: 2002504
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Release characteristicZ
Voltage typeOther
Rated impulse withstand voltage Uimp4kV
Rated voltage230V
Rated current50A
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Power loss5W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Number of poles (total)1
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Additional equipment possibleYes
Width in number of modular spacings1.0
Degree of protection (IP)IP20
Pollution degree3
Connectable conductor cross section solid-core0.75 - 35mm²
Over voltage category3
Explosion-proofNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
