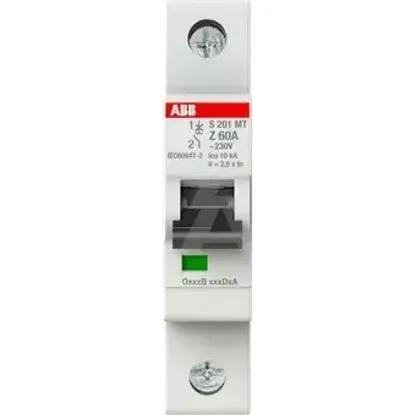

2CDS271445R0588 | S201MT-Z60
Code: 2002506
ManufacturerABB
Catalog number2CDS271445R0588
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779127448
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Rated voltage230V
Over voltage category3
Power loss5.1W
Current limiting class3
Width in number of modular spacings1
Degree of protection (IP)IP20
Frequency50 - 60Hz
Pollution degree3
Rated insulation voltage Ui440V
Explosion-proofNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Ambient temperature during operating-40 - 70°C
Rated current60A
Release characteristicZ
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
