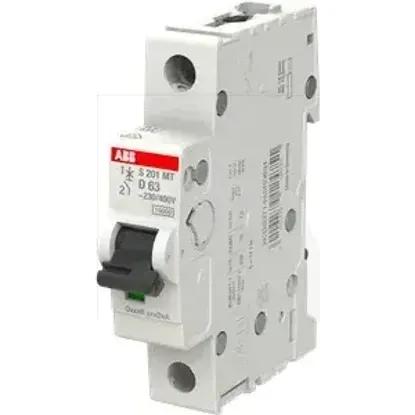

2CDS271445R0631 | S201MT-D63
Code: 2002512
ManufacturerABB
Catalog number2CDS271445R0631
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779124751
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width in number of modular spacings1
Built-in depth69mm
Rated voltage230V
Connectable conductor cross section multi-wired0.75 - 25mm²
Voltage typeOther
Current limiting class3
Additional equipment possibleYes
Over voltage category3
Rated insulation voltage Ui440V
Number of protected poles1
Connectable conductor cross section solid-core0.75 - 35mm²
Frequency50 - 60Hz
Ambient temperature during operating-40 - 70°C
Degree of protection (IP)IP20
Power loss4.8W
Explosion-proofNo
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Pollution degree3
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated current63A
Release characteristicD
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
