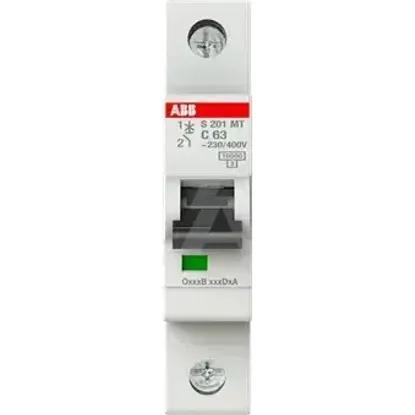

2CDS271445R0634 | S201MT-C63
Code: 2002513
ManufacturerABB
Catalog number2CDS271445R0634
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123433
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage230V
Built-in depth69mm
Frequency50 - 60Hz
Voltage typeOther
Current limiting class3
Power loss4.8W
Over voltage category3
Pollution degree3
Width in number of modular spacings1
Rated insulation voltage Ui440V
Explosion-proofNo
Ambient temperature during operating-40 - 70°C
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Number of protected poles1
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated current63A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
