Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Rated current1.6A
Voltage typeOther
Built-in depth69mm
Rated voltage230V
Current limiting class3
Width in number of modular spacings1.0
Over voltage category3
Release characteristicC
Additional equipment possibleYes
Explosion-proofNo
Rated insulation voltage Ui440V
Power loss1.6W
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Frequency50 - 60Hz
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Number of protected poles1
Pollution degree3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Number of poles (total)1
Ambient temperature during operating-40 - 70°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CDS271445R0974 | S201MT-C1,6

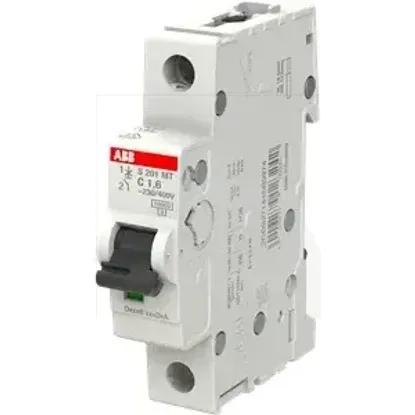

Main Product Image
