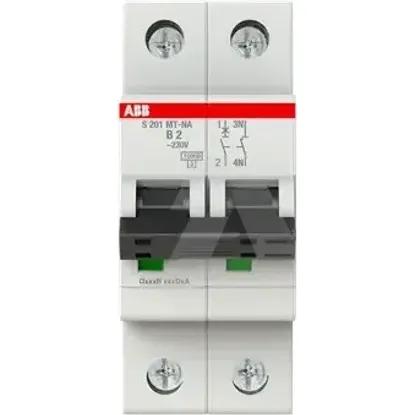

2CDS271446R0025 | S201MT-B2NA
Code: 2002524
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Rated voltage230V
Release characteristicB
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated current2A
Number of protected poles1
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Power loss3.6W
Rated insulation voltage Ui440V
Voltage typeOther
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Frequency50 - 60Hz
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Explosion-proofNo
Over voltage category3
Ambient temperature during operating-40 - 70°C
Flush-mounted installationNo
Width in number of modular spacings2.0
Connectable conductor cross section solid-core0.75 - 35mm²
Pollution degree3
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
