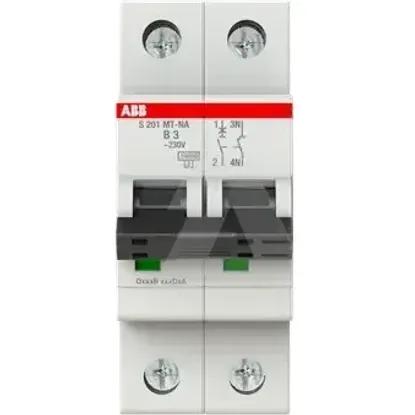

2CDS271446R0035 | S201MT-B3NA
Code: 2002527
ManufacturerABB
Catalog number2CDS271446R0035
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779122245
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage230V
Built-in depth69mm
Frequency50 - 60Hz
Voltage typeOther
Rated insulation voltage Ui440V
Current limiting class3
Width in number of modular spacings2
Degree of protection (IP)IP20
Pollution degree3
Power loss2.6W
Over voltage category3
Explosion-proofNo
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
Number of protected poles1
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorYes
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated current3A
Release characteristicB
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
