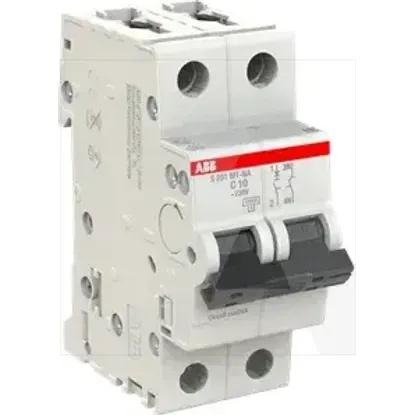

2CDS271446R0104 | S201MT-C10NA
Code: 2002542
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current10A
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Number of poles (total)2
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Release characteristicC
Voltage typeOther
Built-in depth69mm
Rated impulse withstand voltage Uimp4kV
Rated voltage230V
Rated insulation voltage Ui440V
Power loss4.2W
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Concurrently switching neutral conductorYes
Pollution degree3
Width in number of modular spacings2.0
Additional equipment possibleYes
Flush-mounted installationNo
Ambient temperature during operating-40 - 70°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
