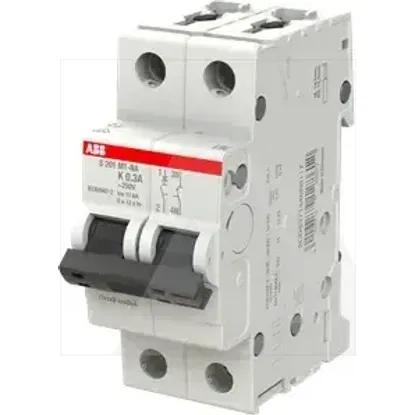

2CDS271446R0117 | S201MT-K0,3NA
Code: 2002544
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Frequency50 - 60Hz
Power loss3.4W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Built-in depth69mm
Number of poles (total)2
Rated voltage230V
Number of protected poles1
Rated current0.3A
Rated insulation voltage Ui440V
Release characteristicK
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Current limiting class3
Concurrently switching neutral conductorYes
Over voltage category3
Flush-mounted installationNo
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Width in number of modular spacings2.0
Pollution degree3
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Degree of protection (IP)IP20
