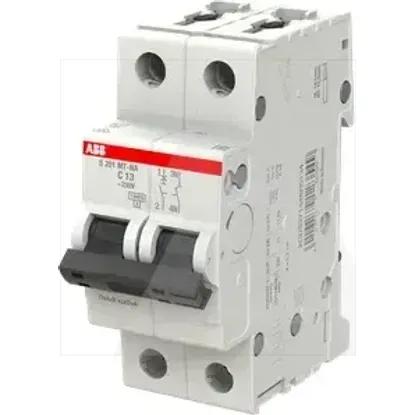

2CDS271446R0134 | S201MT-C13NA
Code: 2002546
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Power loss4.6W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Current limiting class3
Built-in depth69mm
Voltage typeOther
Rated voltage230V
Number of poles (total)2
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Number of protected poles1
Release characteristicC
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated current13A
Pollution degree3
Flush-mounted installationNo
Concurrently switching neutral conductorYes
Explosion-proofNo
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Width in number of modular spacings2.0
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
