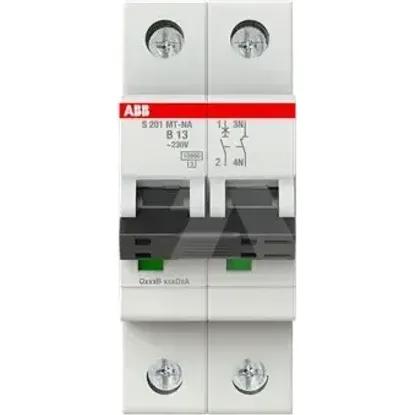

2CDS271446R0135 | S201MT-B13NA
Code: 2002547
ManufacturerABB
Catalog number2CDS271446R0135
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779122306
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Frequency50 - 60Hz
Pollution degree3
Power loss4.6W
Rated voltage230V
Over voltage category3
Width in number of modular spacings2
Explosion-proofNo
Current limiting class3
Rated insulation voltage Ui440V
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Number of protected poles1
Ambient temperature during operating-40 - 70°C
Additional equipment possibleYes
Flush-mounted installationNo
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated current13A
Release characteristicB
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
