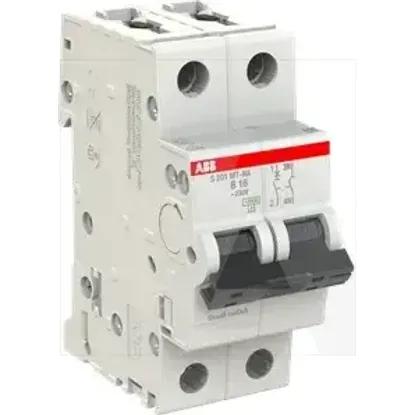

2CDS271446R0165 | S201MT-B16NA
Code: 2002555
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of poles (total)2
Release characteristicB
Rated voltage230V
Built-in depth69mm
Rated current16A
Number of protected poles1
Voltage typeOther
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Power loss5W
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Current limiting class3
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Over voltage category3
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Explosion-proofNo
Additional equipment possibleYes
Pollution degree3
Connectable conductor cross section solid-core0.75 - 35mm²
Width in number of modular spacings2.0
Ambient temperature during operating-40 - 70°C
Flush-mounted installationNo
