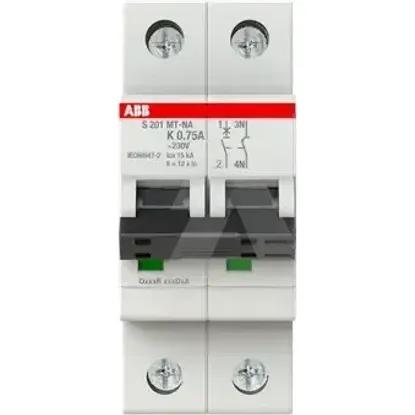

2CDS271446R0187 | S201MT-K0,75NA
Code: 2002556
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of protected poles1
Number of poles (total)2
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Built-in depth69mm
Rated voltage230V
Rated current0.75A
Release characteristicK
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Power loss2.8W
Voltage typeOther
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Concurrently switching neutral conductorYes
Flush-mounted installationNo
Pollution degree3
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Width in number of modular spacings2.0
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 70°C
Additional equipment possibleYes
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS271446R0187 | S201MT-K0,75NA
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of protected poles
1
Number of poles (total)
2
Rated insulation voltage Ui
440V
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Built-in depth
69mm
Rated voltage
230V
Rated current
0.75A
Release characteristic
K
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Power loss
2.8W
Voltage type
Other
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Concurrently switching neutral conductor
Flush-mounted installation
Pollution degree
3
Over voltage category
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Degree of protection (IP)
IP20
Width in number of modular spacings
2.0
Connectable conductor cross section solid-core
0.75 .. 35mm²
Ambient temperature during operating
-40 .. 70°C
Additional equipment possible
Explosion-proof
