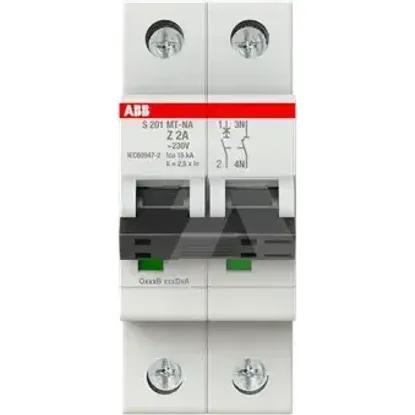

2CDS271446R0278 | S201MT-Z2NA
Code: 2002568
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Number of poles (total)2
Rated current2A
Release characteristicZ
Number of protected poles1
Rated voltage230V
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Voltage typeOther
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Current limiting class3
Power loss5W
Over voltage category3
Pollution degree3
Additional equipment possibleYes
Concurrently switching neutral conductorYes
Width in number of modular spacings2.0
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
Flush-mounted installationNo
Explosion-proofNo
