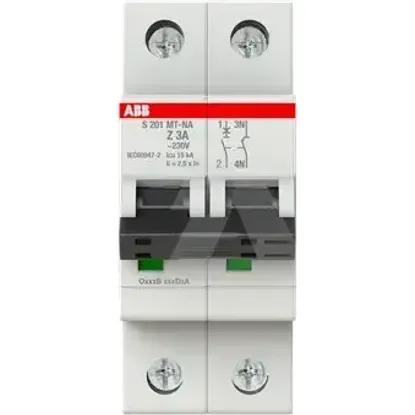

2CDS271446R0318 | S201MT-Z3NA
Code: 2002573
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicZ
Number of protected poles1
Power loss4.8W
Rated impulse withstand voltage Uimp4kV
Voltage typeOther
Current limiting class3
Frequency50 - 60Hz
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated insulation voltage Ui440V
Rated current3A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Built-in depth69mm
Rated voltage230V
Concurrently switching neutral conductorYes
Explosion-proofNo
Width in number of modular spacings2.0
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Degree of protection (IP)IP20
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS271446R0318 | S201MT-Z3NA
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Release characteristic
Z
Number of protected poles
1
Power loss
4.8W
Rated impulse withstand voltage Uimp
4kV
Voltage type
Other
Current limiting class
3
Frequency
50 .. 60Hz
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated insulation voltage Ui
440V
Rated current
3A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Built-in depth
69mm
Rated voltage
230V
Concurrently switching neutral conductor
Explosion-proof
Width in number of modular spacings
2.0
Connectable conductor cross section solid-core
0.75 .. 35mm²
Flush-mounted installation
Degree of protection (IP)
IP20
Additional equipment possible
Ambient temperature during operating
-40 .. 70°C
Over voltage category
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Pollution degree
3
