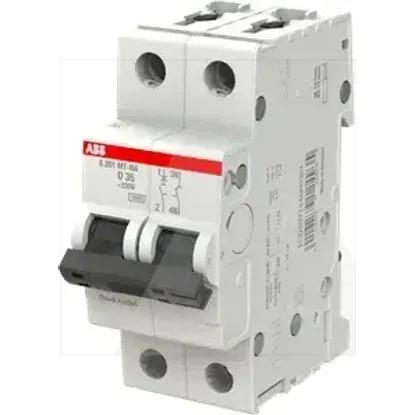

2CDS271446R0351 | S201MT-D35NA
Code: 2002579
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Built-in depth69mm
Release characteristicD
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeOther
Rated impulse withstand voltage Uimp4kV
Rated voltage230V
Current limiting class3
Frequency50 - 60Hz
Number of poles (total)2
Rated current35A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated insulation voltage Ui440V
Power loss-W
Flush-mounted installationNo
Width in number of modular spacings2.0
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
Concurrently switching neutral conductorYes
Over voltage category3
Ambient temperature during operating-40 - 70°C
Degree of protection (IP)IP20
Explosion-proofNo
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
