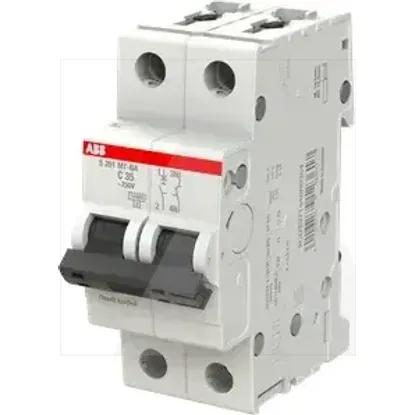

2CDS271446R0354 | S201MT-C35NA
Code: 2002580
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of protected poles1
Number of poles (total)2
Voltage typeOther
Rated insulation voltage Ui440V
Release characteristicC
Current limiting class3
Rated impulse withstand voltage Uimp4kV
Built-in depth69mm
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Power loss-W
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated voltage230V
Rated current35A
Flush-mounted installationNo
Width in number of modular spacings2.0
Ambient temperature during operating-40 - 70°C
Explosion-proofNo
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Pollution degree3
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Concurrently switching neutral conductorYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
