Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicZ
Rated current5A
Built-in depth69mm
Over voltage category3
Current limiting class3
Voltage typeOther
Rated voltage230V
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Pollution degree3
Number of protected poles1
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Width in number of modular spacings2.0
Concurrently switching neutral conductorYes
Flush-mounted installationNo
Ambient temperature during operating-40 - 70°C
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Power loss6W
Explosion-proofNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

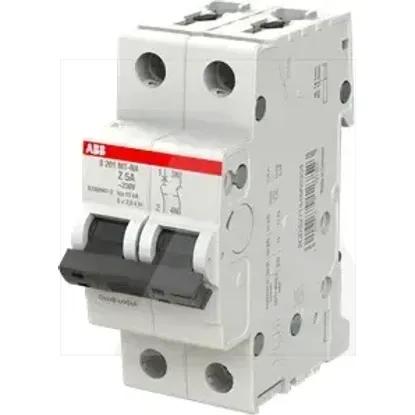

2CDS271446R0358 | S201MT-Z5NA
