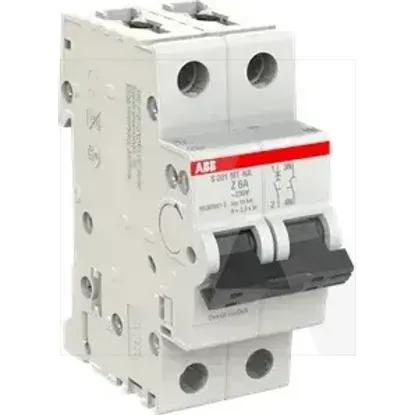

2CDS271446R0378 | S201MT-Z6NA
Code: 2002585
ManufacturerABB
Catalog number2CDS271446R0378
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779127530
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage230V
Built-in depth69mm
Voltage typeOther
Frequency50 - 60Hz
Rated impulse withstand voltage Uimp4kV
Explosion-proofNo
Over voltage category3
Flush-mounted installationNo
Power loss6.4W
Width in number of modular spacings2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Current limiting class3
Number of protected poles1
Pollution degree3
Concurrently switching neutral conductorYes
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Ambient temperature during operating-40 - 70°C
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated insulation voltage Ui440V
Rated current6A
Release characteristicZ
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
