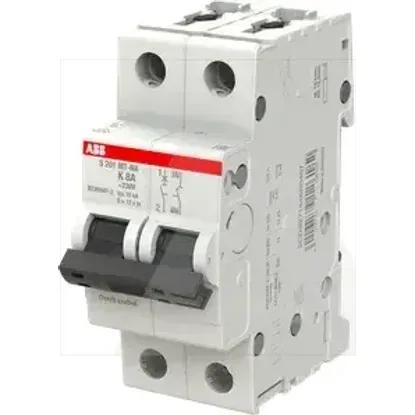

2CDS271446R0407 | S201MT-K8NA
Code: 2002589
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Power loss3W
Number of protected poles1
Release characteristicK
Built-in depth69mm
Number of poles (total)2
Rated voltage230V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeOther
Rated current8A
Current limiting class3
Flush-mounted installationNo
Additional equipment possibleYes
Over voltage category3
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Width in number of modular spacings2.0
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 70°C
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS271446R0407 | S201MT-K8NA
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated impulse withstand voltage Uimp
4kV
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Power loss
3W
Number of protected poles
1
Release characteristic
K
Built-in depth
69mm
Number of poles (total)
2
Rated voltage
230V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Voltage type
Other
Rated current
8A
Current limiting class
3
Flush-mounted installation
Additional equipment possible
Over voltage category
3
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Width in number of modular spacings
2.0
Explosion-proof
Connectable conductor cross section solid-core
0.75 .. 35mm²
Ambient temperature during operating
-40 .. 70°C
Pollution degree
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
