Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Explosion-proofNo
Frequency50 - 60Hz
Degree of protection (IP)IP20
Width in number of modular spacings2.0
Over voltage category3
Power loss4W
Voltage typeOther
Number of protected poles1
Rated insulation voltage Ui440V
Concurrently switching neutral conductorYes
Pollution degree3
Connectable conductor cross section solid-core0.75 - 35mm²
Current limiting class3
Built-in depth69mm
Rated voltage230V
Additional equipment possibleYes
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
Rated current8A
Release characteristicZ
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated impulse withstand voltage Uimp4kV
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

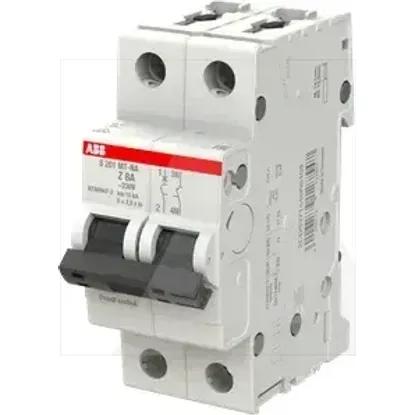

2CDS271446R0408 | S201MT-Z8NA
