Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Over voltage category3
Current limiting class3
Frequency50 - 60Hz
Rated voltage230V
Rated insulation voltage Ui440V
Rated current13A
Voltage typeOther
Built-in depth69mm
Release characteristicZ
Degree of protection (IP)IP20
Width in number of modular spacings2.0
Explosion-proofNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
Concurrently switching neutral conductorYes
Number of protected poles1
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Ambient temperature during operating-40 - 70°C
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Flush-mounted installationNo
Power loss-W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

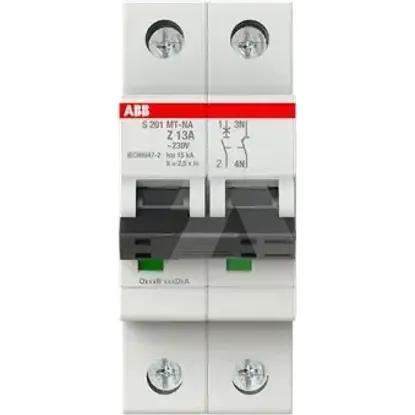

2CDS271446R0448 | S201MT-Z13NA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Over voltage category
3
Current limiting class
3
Frequency
50 .. 60Hz
Rated voltage
230V
Rated insulation voltage Ui
440V
Rated current
13A
Voltage type
Other
Built-in depth
69mm
Release characteristic
Z
Degree of protection (IP)
IP20
Width in number of modular spacings
2.0
Explosion-proof
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Pollution degree
3
Concurrently switching neutral conductor
Number of protected poles
1
Connectable conductor cross section solid-core
0.75 .. 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Ambient temperature during operating
-40 .. 70°C
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Additional equipment possible
Flush-mounted installation
Power loss
-W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
