Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Explosion-proofNo
Rated voltage230V
Rated current15A
Current limiting class3
Voltage typeOther
Built-in depth69mm
Release characteristicK
Pollution degree3
Width in number of modular spacings2.0
Over voltage category3
Rated insulation voltage Ui440V
Number of protected poles1
Power loss4.4W
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Flush-mounted installationNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

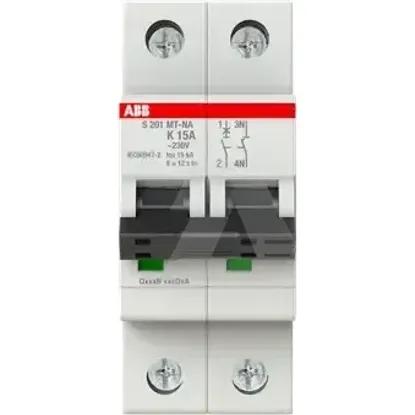

2CDS271446R0457 | S201MT-K15NA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Frequency
50 .. 60Hz
Explosion-proof
Rated voltage
230V
Rated current
15A
Current limiting class
3
Voltage type
Other
Built-in depth
69mm
Release characteristic
K
Pollution degree
3
Width in number of modular spacings
2.0
Over voltage category
3
Rated insulation voltage Ui
440V
Number of protected poles
1
Power loss
4.4W
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Connectable conductor cross section solid-core
0.75 .. 35mm²
Ambient temperature during operating
-40 .. 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated impulse withstand voltage Uimp
4kV
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Flush-mounted installation
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
