Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Rated current16A
Power loss4.4W
Degree of protection (IP)IP20
Width in number of modular spacings2.0
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Current limiting class3
Rated voltage230V
Explosion-proofNo
Number of protected poles1
Over voltage category3
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core0.75 - 35mm²
Release characteristicK
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 70°C
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Additional equipment possibleYes
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

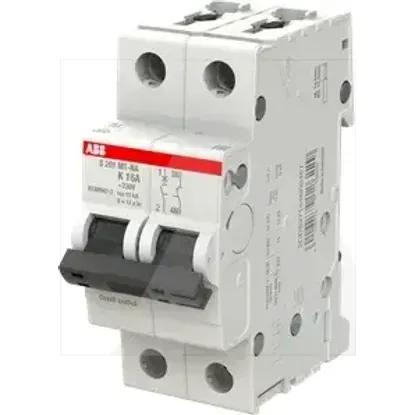

2CDS271446R0467 | S201MT-K16NA
