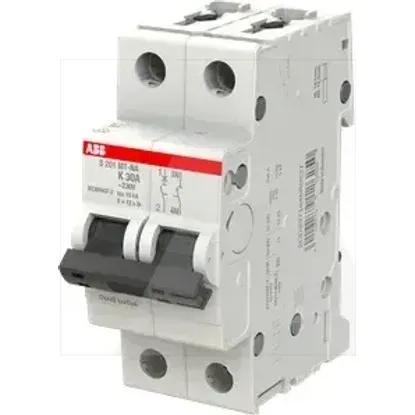

2CDS271446R0527 | S201MT-K30NA
Code: 2002606
ManufacturerABB
Catalog number2CDS271446R0527
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779126250
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage230V
Voltage typeOther
Built-in depth69mm
Current limiting class3
Width in number of modular spacings2
Explosion-proofNo
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of protected poles1
Pollution degree3
Degree of protection (IP)IP20
Over voltage category3
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Concurrently switching neutral conductorYes
Ambient temperature during operating-40 - 70°C
Power loss7W
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated current30A
Release characteristicK
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
